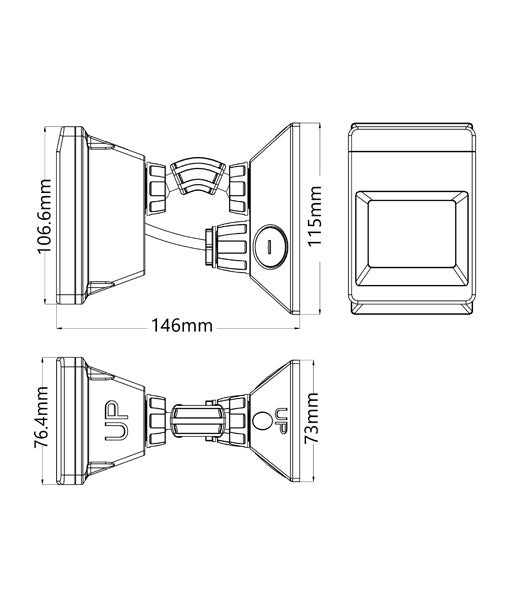

SENS007-008: Adjustable Infrared Surface Mounted Motion Sensors IP66

• Mounting Type: Surface Mounted
• Input voltage: 220-240V 50/60Hz
• Detection Range: 120°
• Detection Distance 12m Max (<24°C)
• Motion Detection Speed: 0.6-1.5m/s
• Rated Load: 2000W HAL/ 1000W CFL/ 1000W LED
• Time Delay: Min.10sec±3sec; Max.30min±2min (restarts from last movement)
• Ambient Light: 3-2000Lux
• Ambient Temp: -20 to 40°C
• Working Humidity: <93%RH
• Power Consumption: approx. 0.5W
• Installation Height: 1.8-2.5m
• Housing Material: PC
• IP Rating: IP66
• UV resistant
• Warranty: 5 year replacement warranty

*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).
